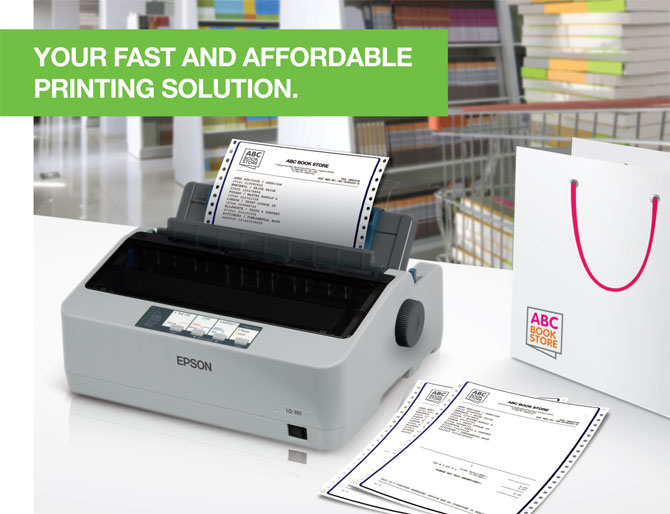

24-PIN NARROW CARRIAGE IMPACT PRINTER
Printing Technology
| Print Method | Impact dot matrix |
| Number of Pins in Head | 24 pins |
| Print Direction | Bi-direction with logic seeking |
| Control Code | ESC/P2 and IBM PPDS emulation |
Print Speed
| High Speed Draft10/12 cpi | 347 / 416 cps |
| Draft10/12/15 cpi | 260 / 312 / 390 cps |
| Draft Condensed17/20 cpi | 222 / 260 cps |
| LQ10/12/15 cpi | 86 / 103 / 129 cps |
| LQ Condensed17/20 cpi | 147 / 172 cps |
Print Characteristics
| Character Sets | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational |
| Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
Printable Columns
| Pitch10/12/15/17/20 cpi | 80 / 96 / 120 / 137 / 160 cpl |
Paper Handling
| Paper Path | |
| Tractor | Rear in, Top out |
| Manual Insertion | Rear in, Top out |
| Paper Size | LengthWidthThickness |
| Cut Sheet (Single Sheet) | 100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.065 - 0.14mm (0.0025 - 0.0055") |
| Cut Sheet (Multi Part) | 100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.12 - 0.32mm (0.0047 - 0.0126") |
| Envelope (No.6) | 92mm (3.6")165mm (6.5")0.16 - 0.52mm (0.0063 - 0.0205") |
| Envelope (No.10) | 105mm (4.1")241mm (9.5")0.16 - 0.52mm (0.0063 - 0.0205") |
| Continuous Paper (Single Sheet an Multi part) | 101.6 - 558.8mm (4.0 - 22.0")101.6 - 254.0mm (4.0 - 10.0")0.065 - 0.32mm (0.0025 - 0.0126") |
| Roll Paper | NA216mm (8.5")0.07 - 0.09mm (0.0028 - 0.0035") |
| Paper Feeding | |
| Standard | Friction, Push Tractor |
| Optional | Roll Paper Holder |
| Copies | Original + 3 copies |
| Line Spacing | 4.23mm (1/6") or programmable in increments of 0.118mm (1/216") |
| Input Data Buffer | 128KB |
| Interface | |
| Standard | Bi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial |
| Ribbon Cartridge | |
| Standard | Fabric Ribbon Cartridge (Black) |
| Ribbon Life | Approx. 2.5 million characters (Draft 10cpi, 48 dots/character) |
| Acoustic Noise | Approx. 53dB(A) (ISO 7779 pattern) |
| Reliability | |
| Mean Print Volume Between Failure (MVBF) | Approx. 20 million lines (Except print head) |
| Mean Time Between | Approx. 10,000 POH (25% Duty) |
| Failure (MTBF) | |
| Print Head Life | Approx. 400 million strokes/wire |
| Control Panel | 4 switches and 5 LEDs |
| Environmental Conditions (Operating) | |
| Temperature | 5 ~ 35°C |
| Humidty | 10 ~ 80% RH |
| Electrical Specification | |
| Rated Voltage | AC 120V / AC 220 - 240V |
| Rated Frequency | 50Hz - 60Hz |
| Power Consumption | |
| Operating | Approx. 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant) |
| Sleep Mode | Approx. 1.0W (120V) / 1.3W (230V) |
| Auto Off Mode | Approx. 0.5W |
| Power Off | 0W |
| Printer Driver / Utility | |
| Operating System | Microsoft® Windows®2000 / XP / 7, Microsoft® Windows Vista® |
| Utility | |
| Epson Status Monitor 3 | Microsoft® Windows®2000 / XP / 7, Microsoft® Windows Vista® |
| Epson Printer Setting | Microsoft® Windows®2000 / XP / 7, Microsoft® Windows Vista® |
